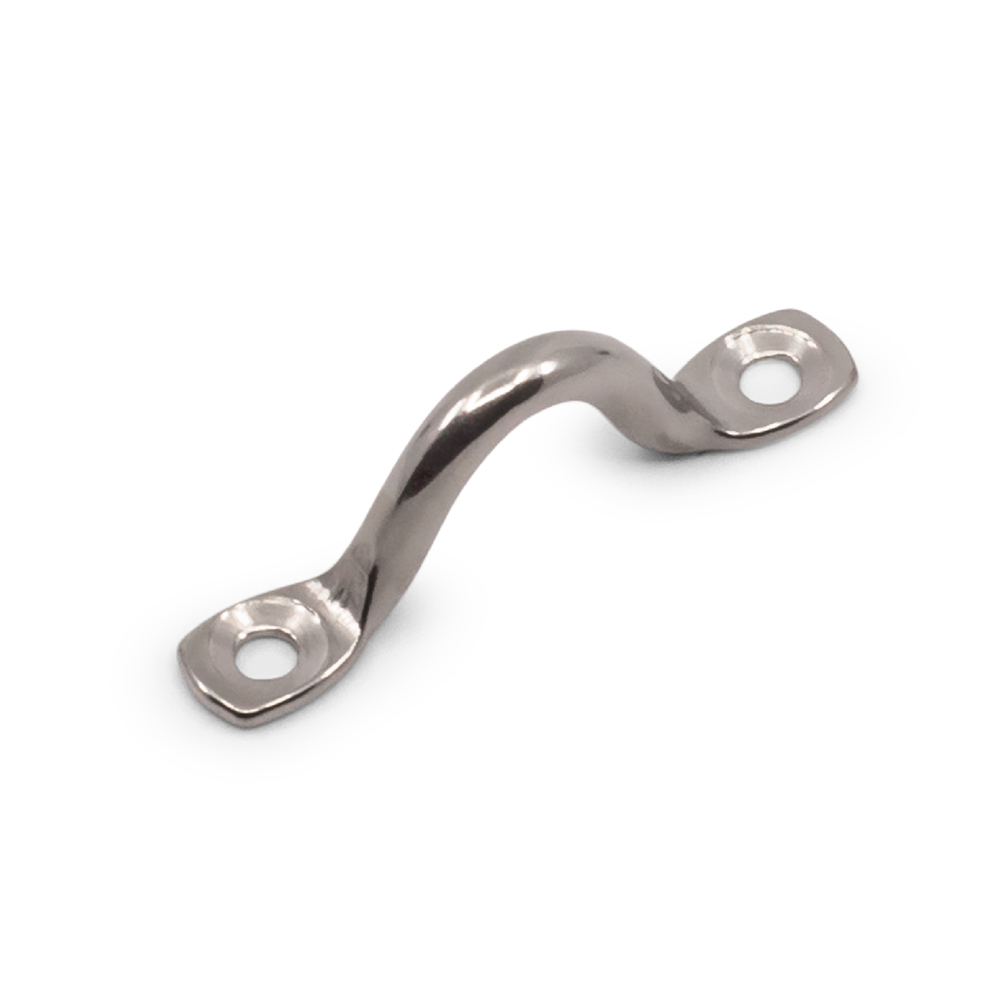

Saddles are commonly used in wire balustrade, marine and general purpose applications. They are used as a connection point for rigging screws, turnbuckles, hooks, wire rope, thimbles etc. Saddles are attached using screws or rivets.
CONSTRUCTION AND FINISH
• Made from premium Quality 316 marine grade stainless steel (4mm in 304 Grade)
• Polished finish for added corrosion resistance
SADDLE/ EYE STRAP 316 GRADE STAINLESS STEEL PRODUCT FEATURES
• Available in sizes 4mm up to 8mm
• Larger sizes available on request

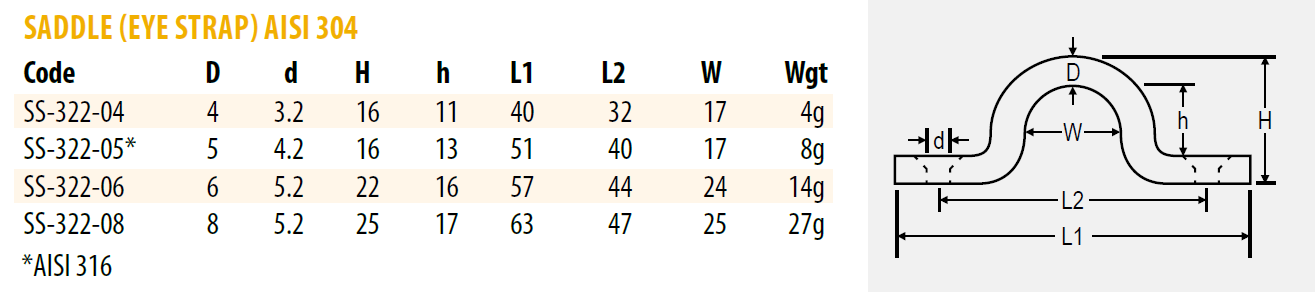

Refer to table below for individual size dimensions.
