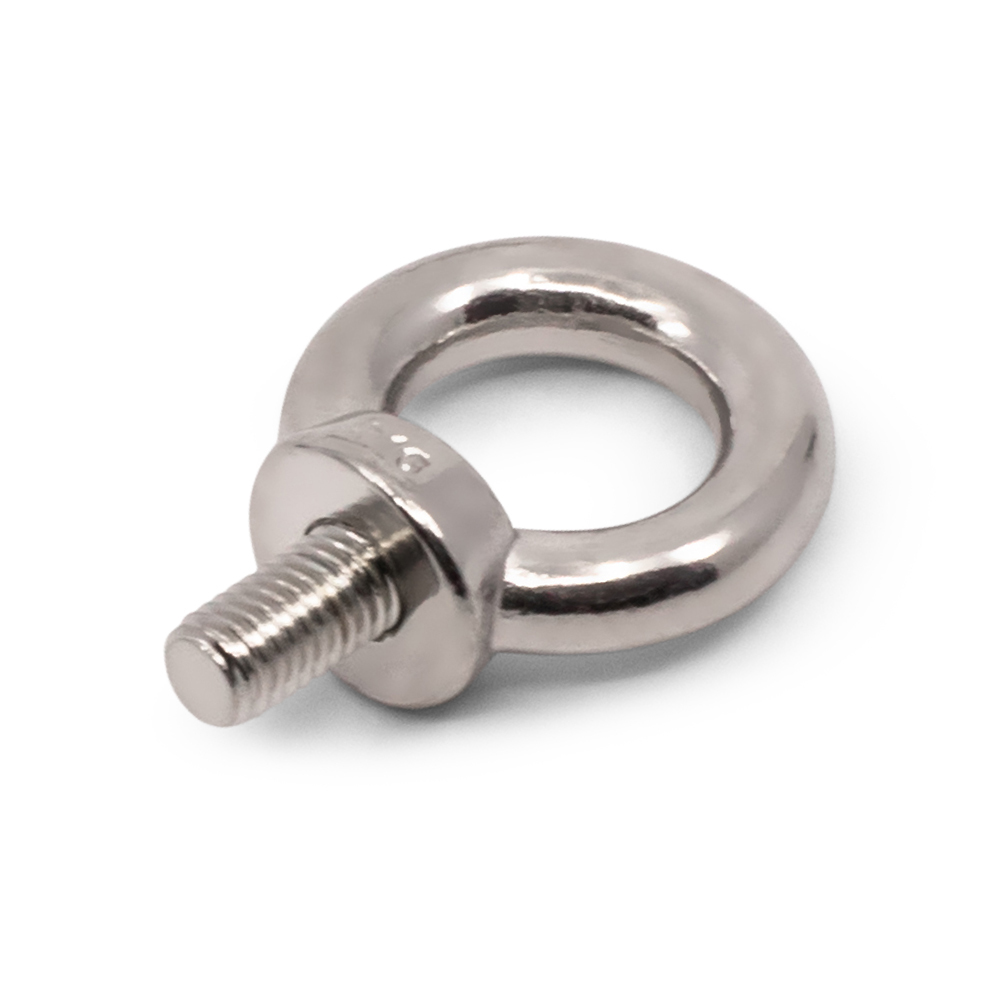

Eye Bolt with Collar Din 580 316 Grade Stainless Steel - SIZES: M6 - M24

Eye Bolt with Collar are commonly used in shade sail, marine and general purpose applications. Eye Bolt with Collar are commonly attached through a post or substrate and allow for an strong an versatile connection point.

CONSTRUCTION AND FINISH
• Made from premium Quality 316 marine grade stainless steel
• Polished finish for added corrosion resistance
• Heavy duty design for extra strength and durability.

EYE BOLT WITH COLLAR DIN 580 316 GRADE STAINLESS STEEL PRODUCT FEATURES
• Available in thread sizes M6 up to M24
• Larger sizes available on request

Refer to table below for individual size dimensions.

SKU Name Dimensions (mm) Weight
SS-580-10 Eye Bolt W/Collar Din 580 - M10x21mm - 316 Grade Stainless Steel 0.0600kg
SS-580-12 Eye Bolt W/Collar Din 580 - M12x23mm - 316 Grade Stainless Steel 0.1080kg
SS-580-16 Eye Bolt W/Collar Din 580 - M16x28mm - 316 Grade Stainless Steel 0.2000kg
SS-580-20 Eye Bolt W/Collar Din 580 - M20x32mm - 316 Grade Stainless Steel 0.3650kg
SS-580-24 Eye Bolt W/Collar Din 580 - M24x40mm - 316 Grade Stainless Steel 0.7620kg
SS-580-06 Eye Bolt W/Collar Din 580 - M6x15mm - 316 Grade Stainless Steel 0.0150kg
SS-580-08 Eye Bolt W/Collar Din 580 - M8x15mm - 316 Grade Stainless Steel 0.0480kg
SKU SS-580-10
Name Eye Bolt W/Collar Din 580 - M10x21mm - 316 Grade Stainless Steel
Dimensions (mm)
Weight 0.0600kg
SKU SS-580-12
Name Eye Bolt W/Collar Din 580 - M12x23mm - 316 Grade Stainless Steel
Dimensions (mm)
Weight 0.1080kg
SKU SS-580-16
Name Eye Bolt W/Collar Din 580 - M16x28mm - 316 Grade Stainless Steel
Dimensions (mm)
Weight 0.2000kg
SKU SS-580-20
Name Eye Bolt W/Collar Din 580 - M20x32mm - 316 Grade Stainless Steel
Dimensions (mm)
Weight 0.3650kg
SKU SS-580-24
Name Eye Bolt W/Collar Din 580 - M24x40mm - 316 Grade Stainless Steel
Dimensions (mm)
Weight 0.7620kg
SKU SS-580-06
Name Eye Bolt W/Collar Din 580 - M6x15mm - 316 Grade Stainless Steel
Dimensions (mm)
Weight 0.0150kg
SKU SS-580-08
Name Eye Bolt W/Collar Din 580 - M8x15mm - 316 Grade Stainless Steel
Dimensions (mm)
Weight 0.0480kg

(S580)
