Bright Finish Factory Swaged Wire Balustrade - Rig Fork System with Saddles - Suits Timber Posts
In StockBright FinishFactory Swaged

Bright Finish

Bright Finish Factory Swaged Wire Balustrade - Rig Fork System with Saddles - Suits Timber Posts

SKU: WBS-RFSAD |  Bright Finish

In Stock — Ready for manufacture

Use the design tools below to price your complete project

Wire Balustrade - Rig Fork System with Saddles Is another of our most versatile systems. It is suitable for use with timber posts and is great for both straight sections and stair sections. Tension is created on the wire by rotation of the rigging screw body. Tightening the nuts against the body ...

Perfect Fit
Guarantee

Flat Rate
Shipping

316 Marine
Grade SS

3D Balustrade Designer

Design your balustrade in 3D, get an instant quote with all components calculated

Wire Calculator

Enter your measurements and get an instant quote with wire lengths and pricing

Need help with your project?

Our team can walk you through the options

1300 781 266

See It In Action

Bright Finish Factory Swaged Wire Balustrade - Rig Fork System with Saddles - Suits Timber Posts
Product Video

Wire Balustrade - Rig Fork System with Saddles

Is another of our most versatile systems. It is suitable for use with timber posts and is great for both straight sections and stair sections. Tension is created on the wire by rotation of the rigging screw body. Tightening the nuts against the body of the rigging screw locks the system in place.


Our Bright Finish range offers a stylish and extremely durable finish to your wire balustrade system. Made from high quality 316 Grade stainless steel and processed to perfection this bright stianless steel finish offers long term corrosion resistance with a smooth and shiny lustre. To see this high quality finish for yourself we recommend ordering a FREE SAMPLE HERE.

THIS SYSTEM:
• is suitable for use with timber posts
• is great for both flat and stair sections
• Requires factory hydraulic swaging
• AWR can factory swage balustrade wires to your exact lengths. General dispatch is 1-2 business days from the time your order is confirmed. Manufacture times may vary during busy periods.

KEY BENEFITS OF THIS SYSTEM:
• Wires are pre-manufactured to your exact lengths
• Extremely quick and simple installation
• Uses ultra-bright and sleek 1 x 19 wire rope
• All fittings made from high quality 316 grade stainless steel
• This system is suitable for both flat and stair sections

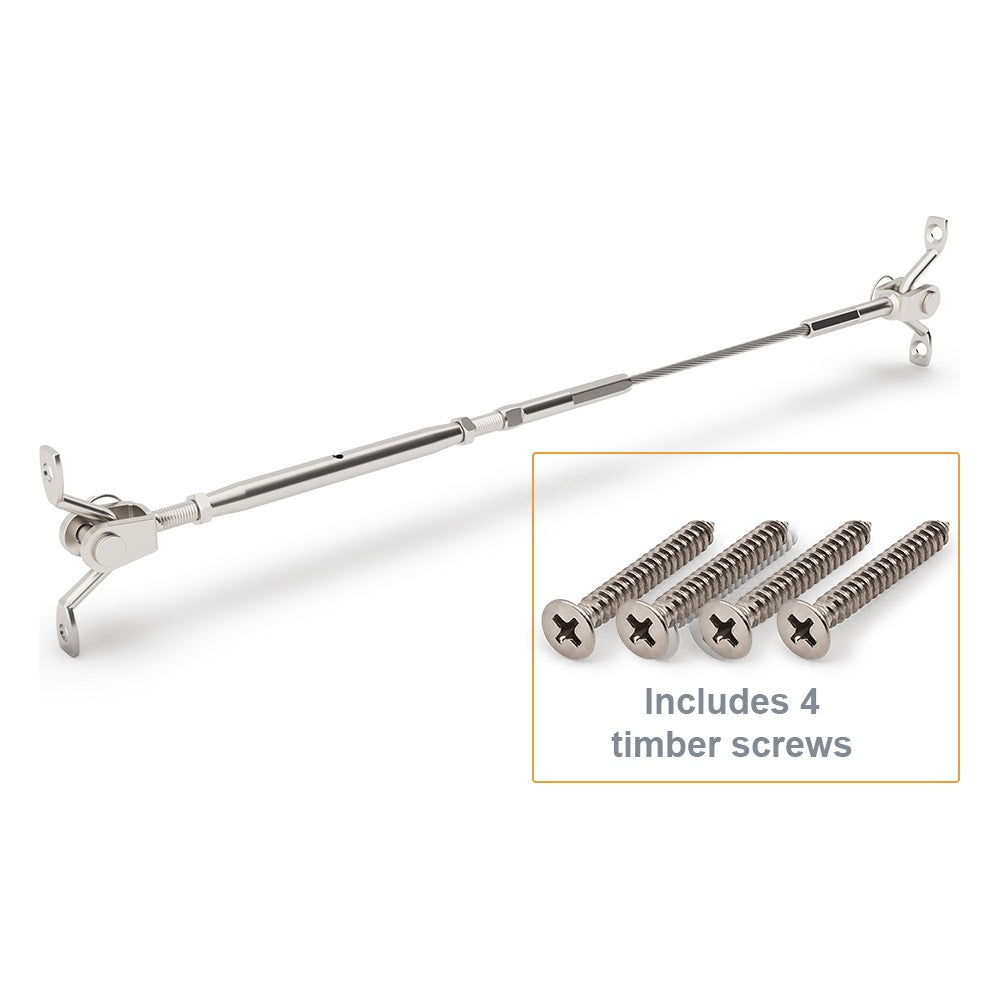

COMPONENTS REQUIRED PER WIRE:
1 x SS-312T-532 - Rigging Screw Jaw - Swage 316 grade M5 3.2m Wire
1 x SS-7803-03 - Fork Terminal - Swage 316grade 3.2mm Wire
2 x SS-322-05 - 5mm Saddle (Eye Strap) - 316 Grade
4 x STCP8114 - 8G x 1-1/4" Countersunk Head Self Tapper - 304 Grade
2 x S03 - Cut and Factory Swage (Additional Cost)
WRS119316-032-MTR - 3.2mm 1 x 19 Wire Rope 316 Grade (Additonal cost Charged per Metre)


More Questions? No problem, just send us an email at sales@awrsolutions.com.au or give us a call on 1300 781 266 and we would be happy to help.

Specifications coming soon. Please contact us for details.

Wire Balustrade - Rig Fork System with Saddles is suitable for use with timber posts.
Wire Balustrade - Rig Fork System with Saddles is suitable for both flat and stair sections.
All of our wires are made to order. General dispatch is 1-2 business days from the time your order is confirmed, and pick-up orders are ready within the same timeframe. During busy periods please allow an extra business day.
Saddles are attached to your connection posts using 8g x 1 1/4" self tapping screws and will require 2 x 2mm pilot holes per saddle. A slightly larger pilot hole may be required when using hardwood posts. For your intermediate posts, an 8mm hole will be required to pass the threaded terminal through. If you are using split grommets, choose them to suit the wall thickness of your intermediate posts: GROM-L-BK (black) or GROM-L-SR (silver) - suits 3-4mm wall thickness GROM-S-BK (black) or GROM-S-SR (silver) - suits 1.6-2mm wall thickness All four grommets are designed for the same 8mm hole, so there is no change to your intermediate post drilling.
Yes, the Fork ends will naturally pivot to the angle of your stairs on the Saddles.
Please give us your inside post to inside post measurements between your connection posts and we will take care of the rest.
The maximum recommended span between connection posts for this system is 10 metres. Note: with a Rigging Screw at each end you can run a span of up to 15 metres.
As with all factory made systems we recommend using 3.2mm 1x19 wire. The fittings are hydraulically pressed onto the wire for a super streamline system.
You will need a power drill, drill bits, drive bits and an adjustable spanner. We also recommend the AWR Multi Tool (MT01-090) for tensioning your Rigging Screws, which makes installation much easier.
All wires are bundled per section and labelled with your measurements for quick installation on site.
We strongly advise against bending your wire around corners and angled sections. This can fatigue the wire over time as well as damage to your posts (especially timber). Wires should be terminated at each corner and end post.
To comply with Australian NCC regulations most wire balustrades will require 80mm spacing between your wires when your intermediate posts are no more than 1500mm apart. This is usually 11 runs of wire on a 1 metre high balustrade measuring 960mm to the underside of the handrail. This applies to most decks over 1 metre from the ground and below 4 metres from the ground, and there are additional restrictions that may apply. We highly recommend reading the Wire Balustrade Regulations Help section of our website prior to ordering.
To comply with Australian NCC regulations, the maximum spacing between your intermediate posts will be 1500mm for most wire balustrades. We highly recommend reading the Wire Balustrade Regulations Help section of our website prior to ordering.
