In Stock316 Grade Stainless Steel
Rigging Screw/ Turnbuckles/ Forks
1 1

SKU: SS-312T-532

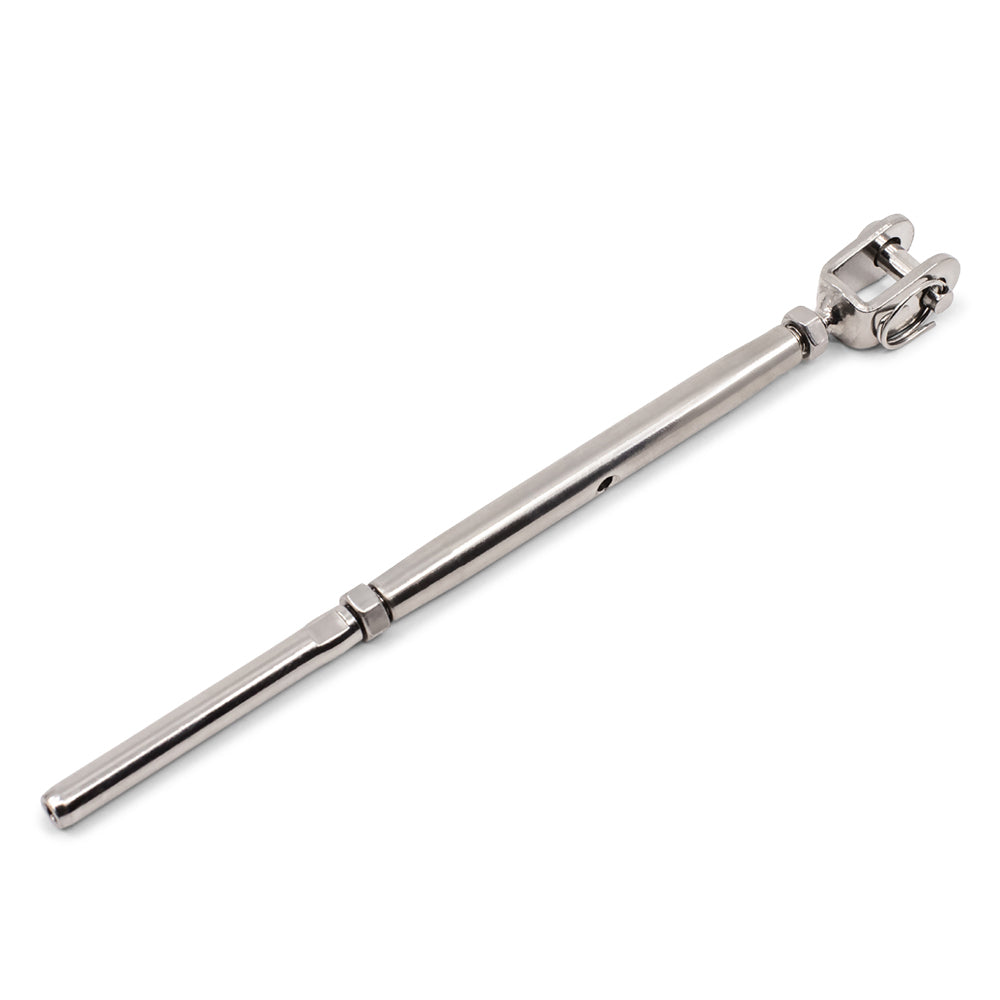

Rigging Screw Jaw/ Swage 316 Grade Stainless Steel - SIZES: M5 - M16

Rigging Screw Jaw / Swage are one of our most popular products. They are commonly used in wire balustrade, shade sail, tension structure and construction applications. Rigging screws are swaged in a hydraulic press,...

In Stock  ·  Order by 2pm for next day dispatch
Select Size
Apple Pay Google Pay Mastercard PayPal Visa
Secure Checkout 60 Day Returns
Express Air Delivery (1kg, 3kg, 5kg, 10kg, and 20kg options) Not available for Posts, Bulk Items - Australia wide – Full tracking
From $24.75
Premium Road Shipping (Orders over $550) Excludes Posts, bulk Items - StarTrack – Secure, full tracking
Max. $28.60
Premium Road Shipping (Orders under $550) Excludes Posts, bulk Items - StarTrack – Secure, full tracking
Max. $41.80
Click & Collect – Luscombe QLD 4207 Mon–Thu 8am–4:30pm, Fri 8am–3:30pm
FREE
Secure Checkout 256-bit SSL Encryption
60 Day Returns Easy returns policy
Quality Guarantee Premium 316 SS

Rigging Screw Jaw/ Swage 316 Grade Stainless Steel - SIZES: M5 - M16

Rigging Screw Jaw / Swage are one of our most popular products. They are commonly used in wire balustrade, shade sail, tension structure and construction applications. Rigging screws are swaged in a hydraulic press, creating an ultra-strong connection between the wire and stainless steel fitting.

Construction and finish

  • Made from premium quality 316 marine-grade stainless steel
  • Brushed finish for added style and lustre
  • Electropolished finish for added corrosion resistance (selected sizes and styles only)
  • Heavy-duty jaws for extra strength and durability
  • Forged barrel design for a sleeker finish and stronger threads

Rigging Screw Jaw + Swage 316 Grade Stainless Steel — Product Features

  • Available in sizes to suit 2.5mm wire rope up to 8mm wire rope
  • Larger sizes available on request
  • Recommended to be swaged using a hydraulic press

Refer to the table below for individual size dimensions.

Dimensions

Rigging Screw Jaw + Swage W/Lock Nuts


Code Rope Ø
(mm) 		T
Thread 		B
(mm) 		D
(mm) 		H
(mm) 		L
(mm) 		L1
(mm) 		BL
Break load (kg) 		Wgt
Each (g)
SS-312T-525 2.5 M5 8.5 5.0 9 155 80 750 52
SS-312T-532 3.2 M5 8.5 5.0 9 155 80 750 52
SS-312T-632 3.2 M6 9.5 6.0 10 175 95 1000 76
SS-312T-64 4.0 M6 9.5 6.0 10 175 95 1000 80
SS-312T-85 5.0 M8 10.5 8.0 10 205 105 1400 146
SS-312T-106 6.0 M10 12.5 10.0 13 230 125 2200 278
SS-312T-128 8.0 M12 15.5 12.0 19 290 150 4000 477

All dimensions in millimetres. BL = Break Load (kg). AISI 316 marine-grade stainless steel.
†CSPAN-RS-M5 only suitable for use with M5 rigging screws — refer Specialised Tools.
