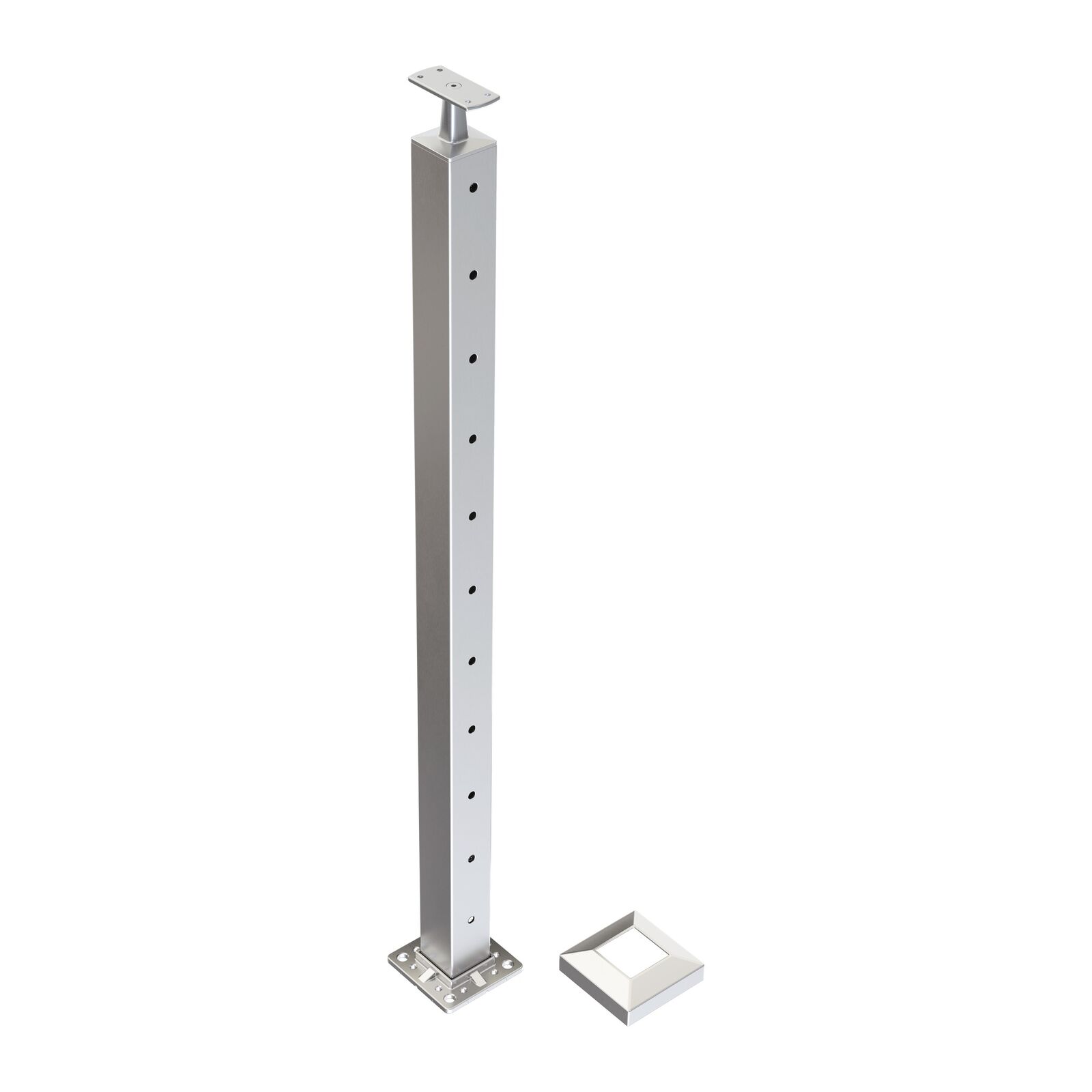

Square Intermediate Post 50.8mm x 1.6mm - 960mm High Suits Flat Handrail 316 Grade Stainless Steel Satin Finish

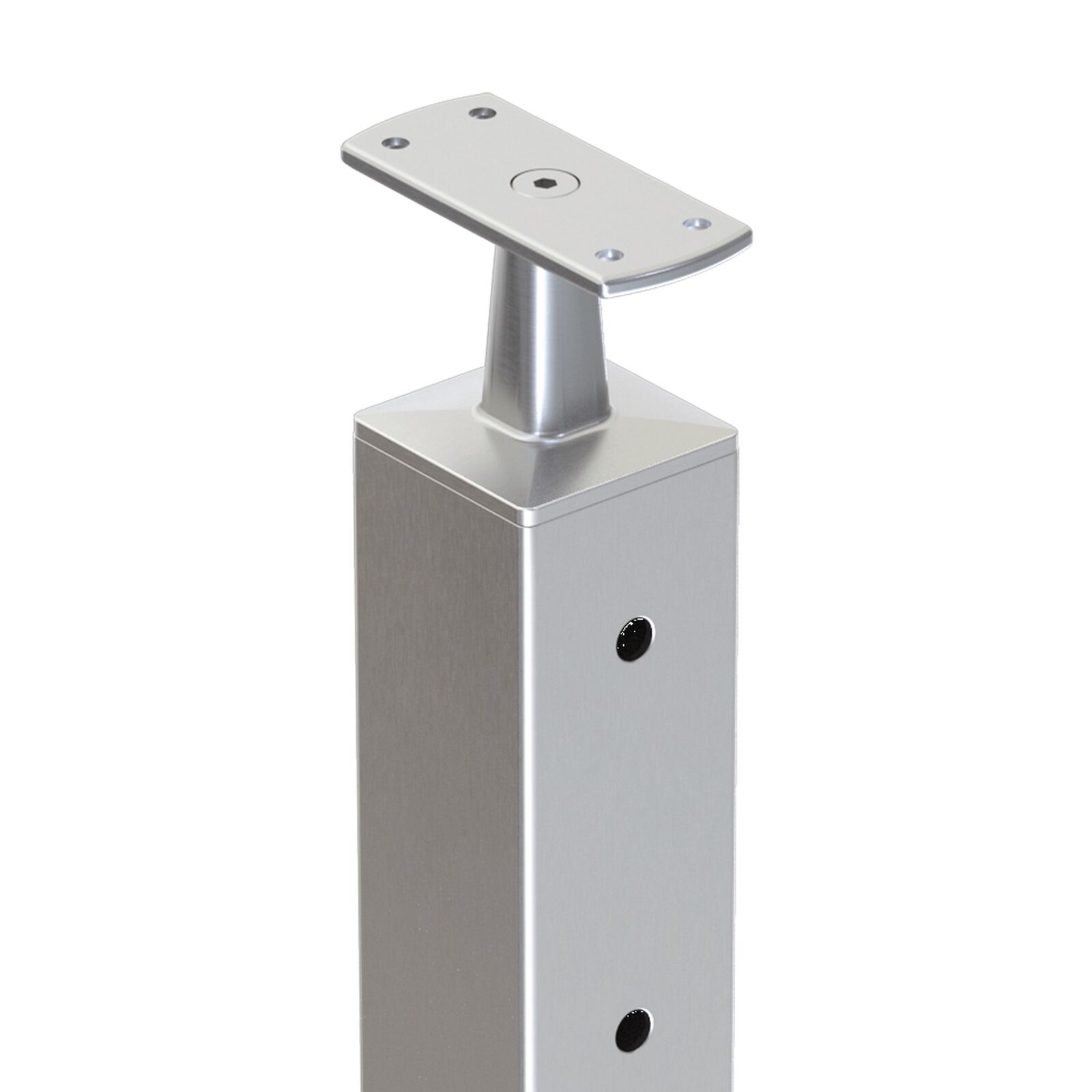

Square Intermediate Post designed for use in wire balustrade systems where the wires pass through the post. This 960mm high post (including saddle top) is constructed from premium 316 marine grade stainless steel with a satin finish, and features a stylish flat saddle top suitable for fixing a flat handrail. A minimum handrail thickness of 40mm is recommended to bring your finished balustrade height to 1 metre. Pre-drilled at 80mm spacing to comply with NCC balustrade regulations, and supplied with a heavy-duty 100mm base plate for secure top-fix mounting.

CONSTRUCTION AND FINISH

  • Made from premium quality 316 marine grade stainless steel
  • Satin finish for a clean, contemporary appearance

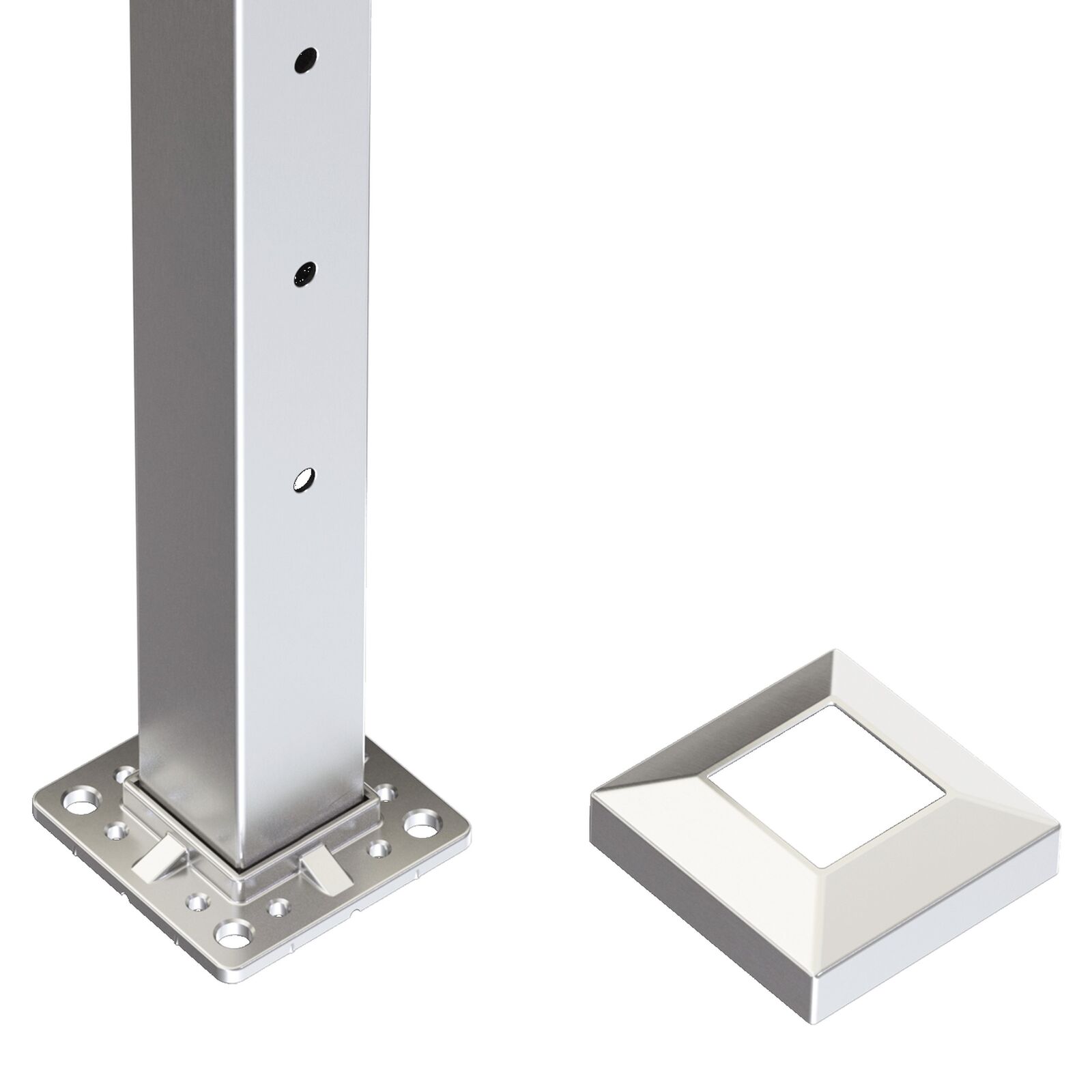

  • Heavy-duty 100mm base plate welded for structural integrity
  • Pre-drilled cable holes at 80mm spacing to meet NCC compliance
  • Stylish, uniquely designed AWR saddle top — designed in-house for a refined finish

INTERMEDIATE POST PRODUCT FEATURES

  • Post tube: 50.8mm square x 1.6mm wall thickness
  • Overall height: 960mm (including saddle top)
  • Base plate: 100mm heavy-duty
  • Handrail support: Flat saddle top — suits flat handrail (timber or stainless steel); minimum 40mm thickness recommended
  • Finish: Satin Finish (SF)

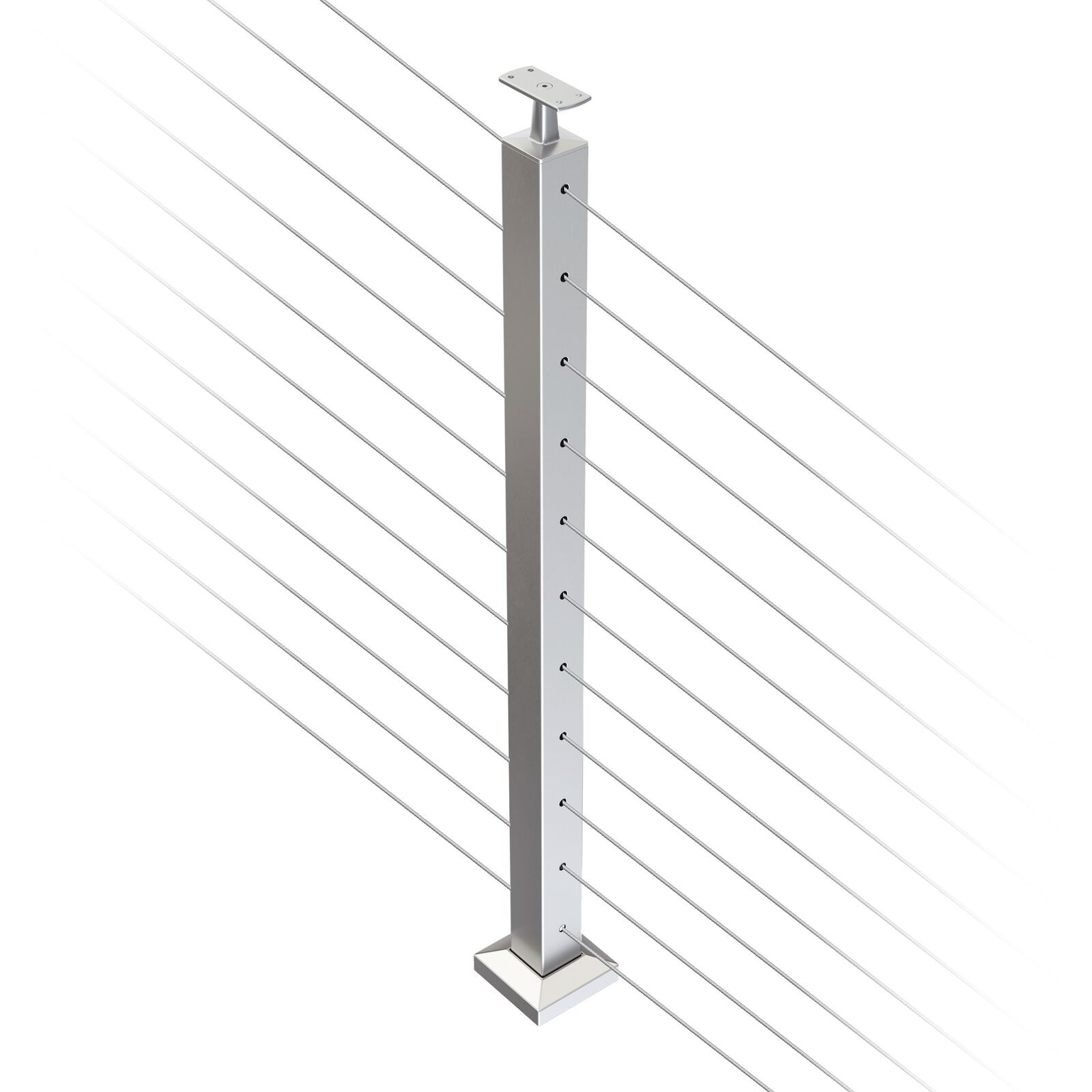

  • Function: Pass-through post — wires run through the pre-drilled holes (non-terminating)
  • Application: Infill position between termination posts on a continuous run

Pair with our square handrail fittings and our factory made wire balustrade kits and systems to complete your balustrade.

Recommended for use with our split silver grommets to protect the wires as they pass through the post.

(SSSP-INT50960F-SF)
