Shackle Bow Grade "S" Galvanised are commonly used in lifting applications within the marine, agricultural and construction industries. Shackle Dee Grade "S" Galvanised are marked with working load limit in tonnes, quality grade, batch numbered, nominal size in millimetre and supplier identification. Test certificates are available upon request.
CONSTRUCTION AND FINISH
• AS2741 manufactured from Grade S material in dee configuration with screw pin hot dipped galvanised
• Heavy duty frame for extra strength and durability
• Also available in black color in all sizes upon request.
SHACKLE BOW GRADE S GALVANISED PRODUCT FEATURES
• Available in sizes 6mm up to 29mm
• Larger sizes available on request

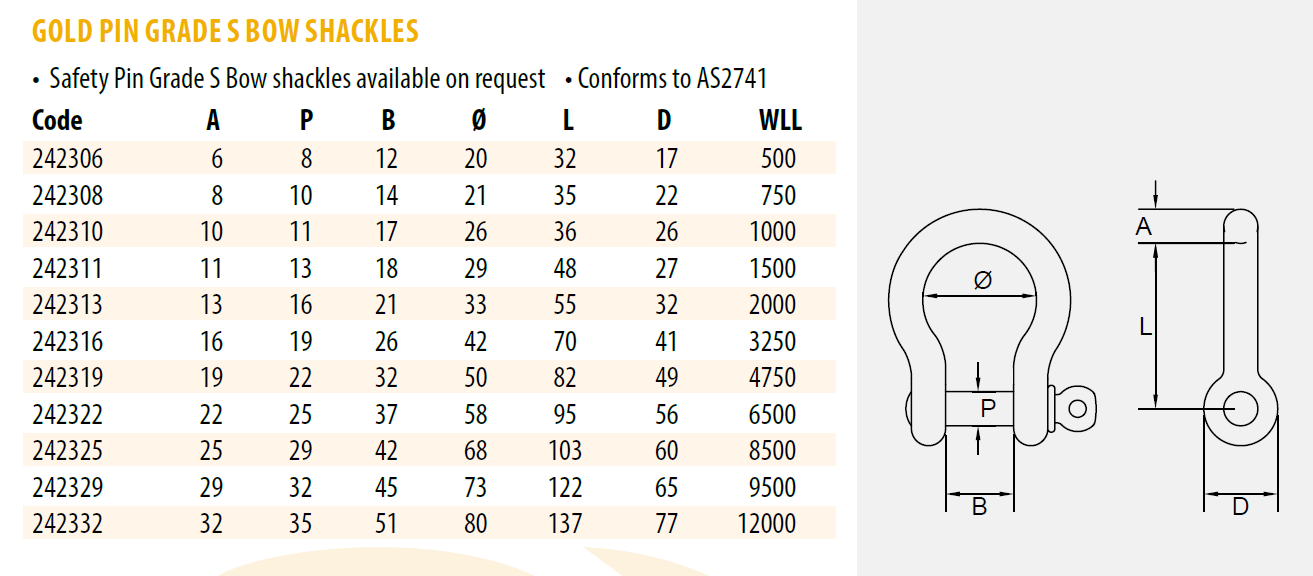

Refer to table below for individual size dimensions.
WLL – Working Load Limit (kg)
