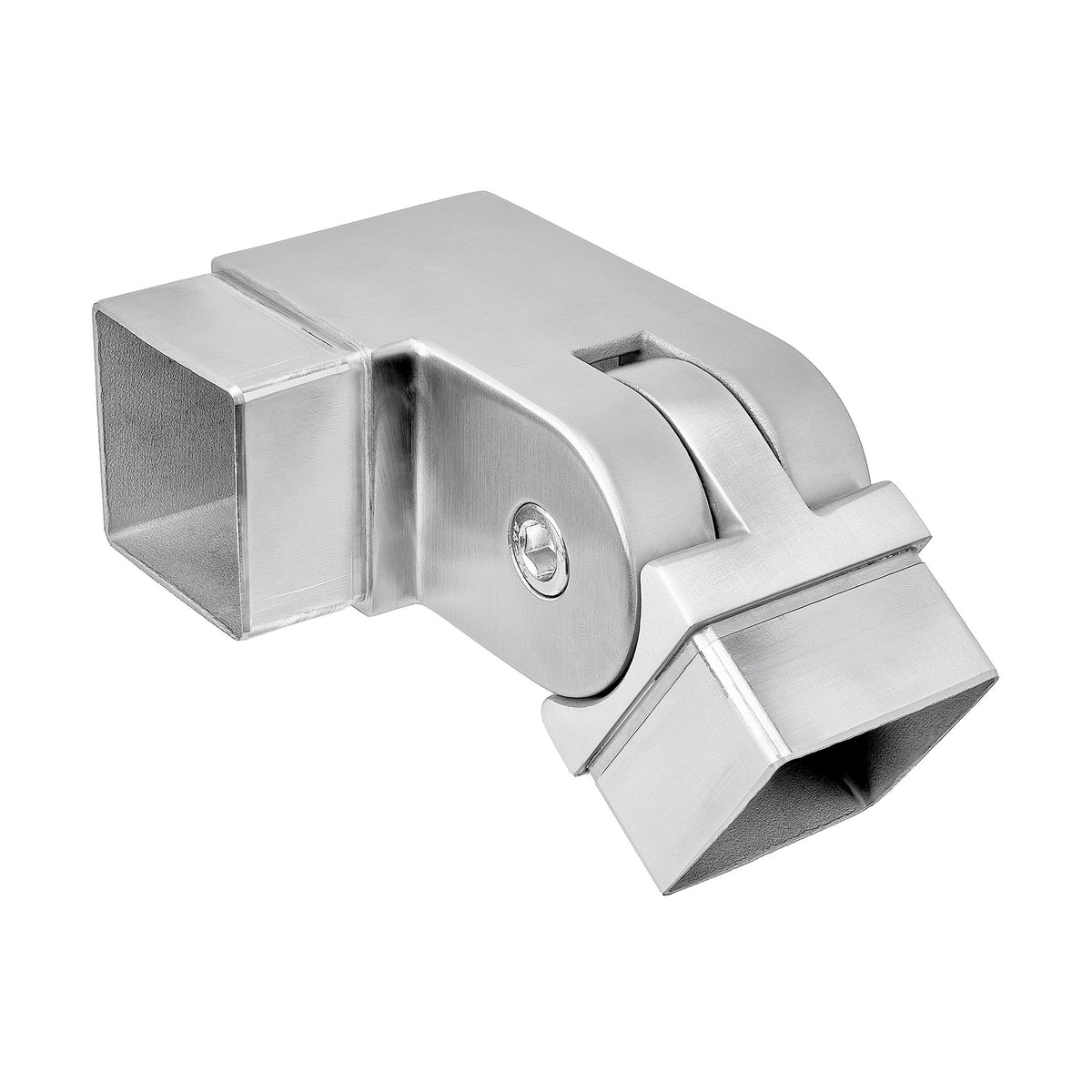

Square Stair 90 Degree Adjustable Joiner to suit 2 (50.8mm) x 1.6mm Square Tube 316 Grade Stainless Steel - Satin Finish

The Square Stair 90 Degree Adjustable Joiner is a precision cast 316 marine grade stainless steel fitting that carries 50.8mm square handrail tube through a 90 degree change of direction while adjusting for the rake of a stair flight. Supplied in a satin finish for a clean, flush-fitting joint.

The adjustable body lets the vertical angle be set on site, so the same fitting handles a landing turn on a raked run without needing a custom bend. Suits 50.8mm (2") x 1.6mm wall square tube. Sold individually.

Features

• 90 degree change of direction with an adjustable rake angle
• Connects two lengths of 50.8mm square handrail tube
• Flush fitting for a clean finished joint
• Precision cast 316 marine grade stainless steel for superior corrosion resistance
• Satin finish
• Designed for stair landings and corner transitions

Specifications

• Fitting type: Stair 90 degree adjustable joiner
• Suits tube: 50.8mm (2") square x 1.6mm wall
• Material: 316 grade stainless steel
• Finish: Satin finish
• Stock code: HR-SS-20351E
