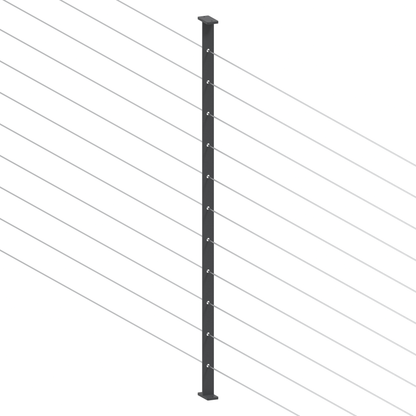

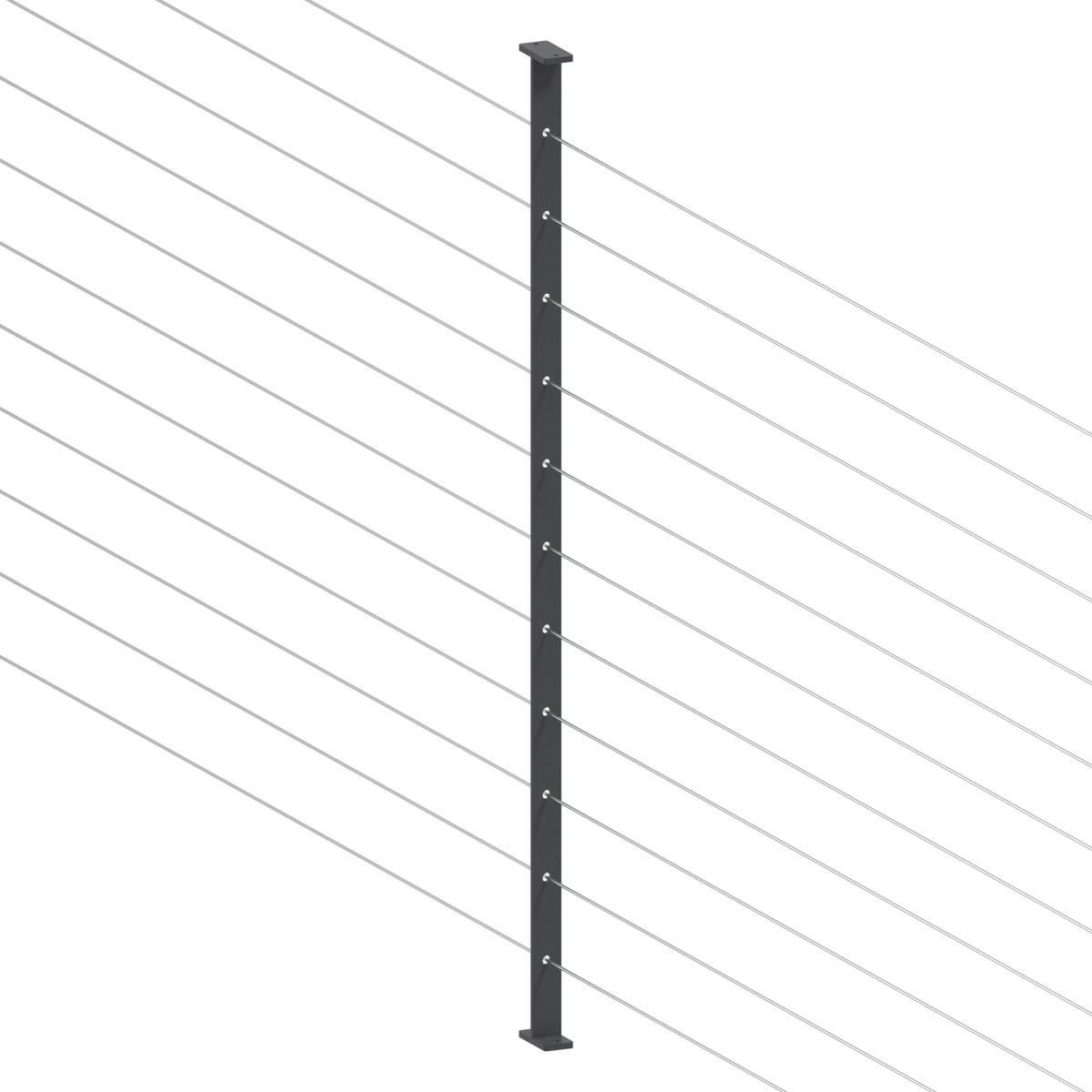

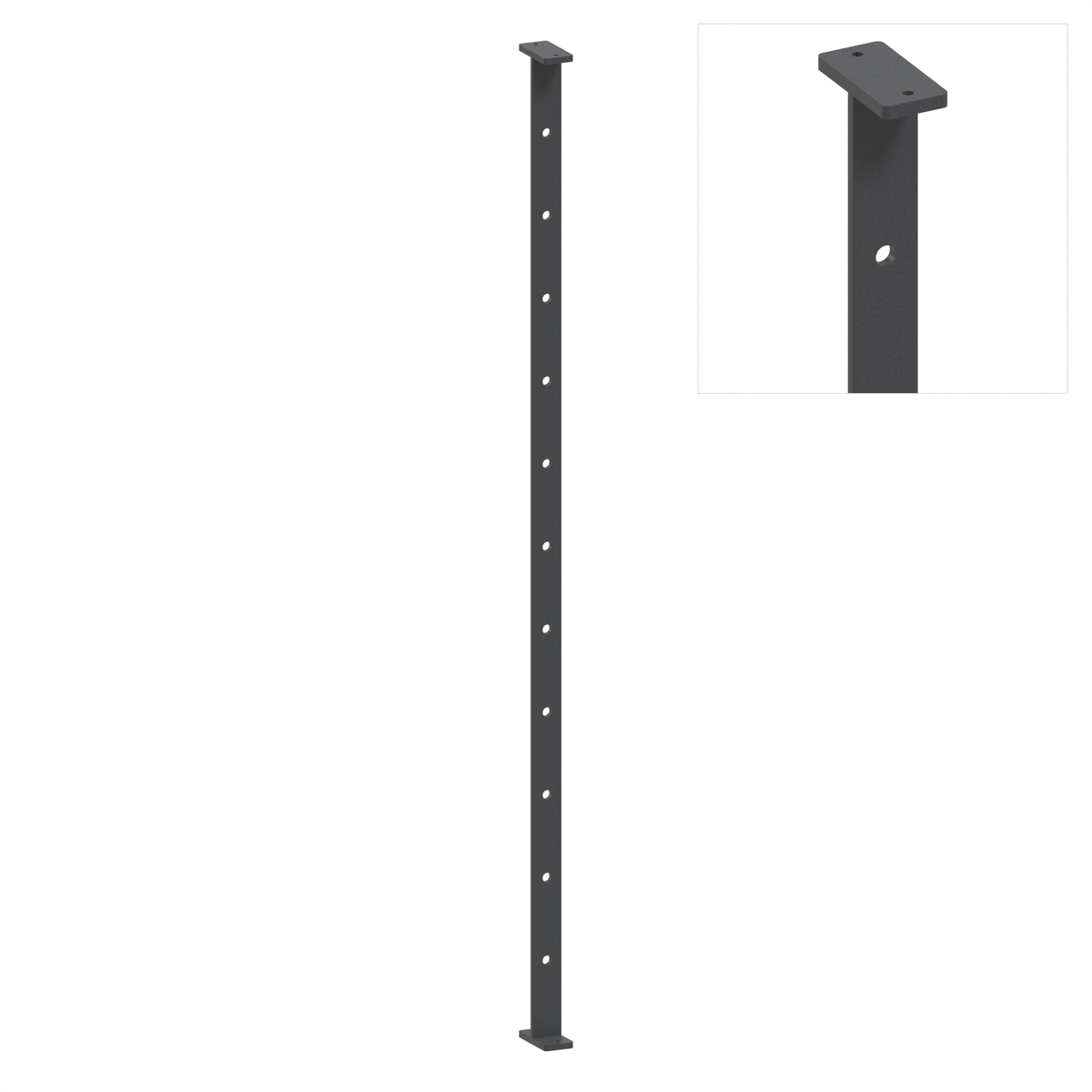

Intermediate Post 30mm x 5mm - 960mm high. Predrilled with 11 x 8mm holes at 80mm spacing - Aluminium - Textured Black
Intermediate post 30 x 5mm are designed for use with our range of Stainless Steel Wire Balustrade systems.
CONSTRUCTION AND FINISH
• Made from premium Aluminium
• Powder Coated Black for an attractive, durable and cost effective finish
• Textured Black finish for added style and long term durability
PRODUCT FEATURES
• Manufactured out of 30 x 5mm Flat Bar

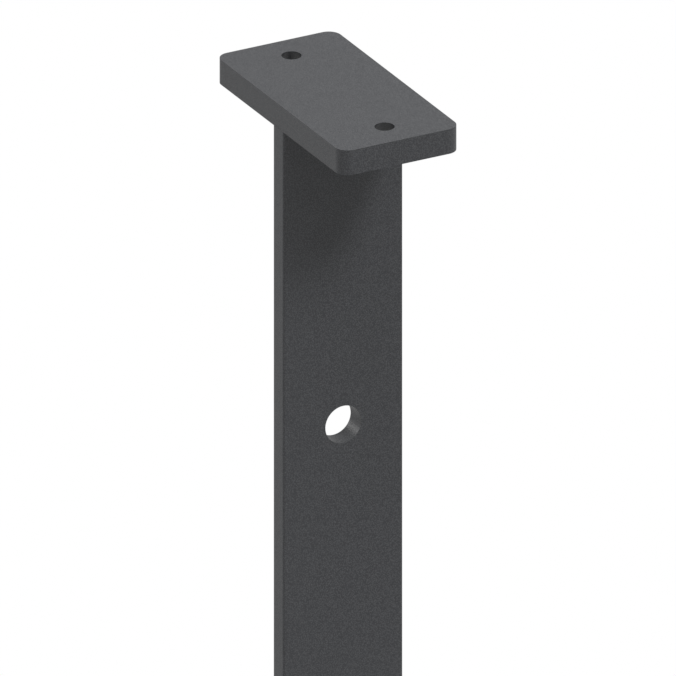

• Manufactured to 960mm high to the underside of the handrail with a welded top and bottom plate to suit flat handrail
• 11 holes drilled at 80mm centers
Refer to the table below for individual size dimensions.
Intermediate Post 30 x 5mm Flat Bar Textured Black
| Code | H (mm) |
H1 (mm) |
T (mm) |
B (mm) |
W1 (mm) |
W2 (mm) |
Wire hole Ø (mm) |
Fixing hole Ø (mm) |
|---|---|---|---|---|---|---|---|---|
| INT3005A-B | 960 | 80 | 6.0 | 31 | 61 | 44 | 8.0 | 4.2 |
All dimensions in millimetres. H = overall height, H1 = wire hole spacing, T = material thickness, B = base plate depth, W1 = base plate width, W2 = fixing hole centres. Manufactured from 30 x 5mm aluminium flat bar with welded top and bottom plates, powder coated Textured Black. 11 wire holes drilled at 80mm centres.
