Wire Balustrade - Metal Insert STAIR System

Is one of our most streamline systems. It is suitable for use with metal posts and is great for both straight sections and stair sections. Tension is created on the wire by threading the LHT/ RHT swage studs into the LHT/ RHT Nutserts. Tightening the nuts against the head of the Nutserts locks the system in place.

THIS SYSTEM:
• is suitable for use with metal posts
• is purpose built for stair sections
• Requires factory hydraulic swaging
• AWR can factory swage balustrade wires to your exact lengths. General dispatch is 1-2 business days from the time your order is confirmed. Manufacture times may vary during busy periods.

KEY BENEFITS OF THIS SYSTEM:
• Wires are pre-manufactured to your exact lengths
• Extremely quick and simple installation
• Uses ultra-bright and sleek 1 x 19 wire rope
• All fittings made from high quality 316 grade stainless steel (Nutserts 304 grade)

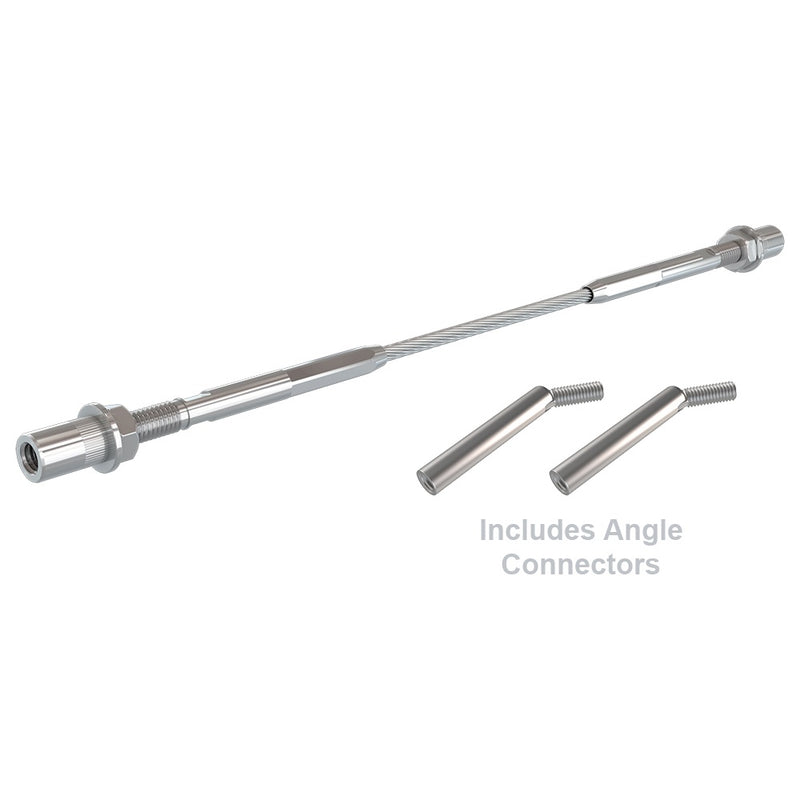

• Angle Connectors are included, so this system is ready for stairs

COMPONENTS REQUIRED PER WIRE:
1 x NS-SS-M06-L - M6 LHT Large Flange Nutsert 304 Grade
1 x NS-SS-M06-R - M6 RHT Large Flange Nutsert 304 Grade
1 x SS-7801-03635L - M6 x 35mm LHT Swage Stud to suit 3.2mm Wire 316 Grade
1 x SS-7801-03635R - M6 x 35mm RHT Swage Stud to suit 3.2mm Wire 316 Grade
1 x SS-7813L-0615 - Angle Connector M6 x 15mm LHT - 316 Grade Stainless Steel
1 x SS-7813R-0615 - Angle Connector M6 x 15mm RHT - 316 Grade Stainless Steel
2 x S03 - Cut and Factory Swage (Additional Cost)
WRS119316-032-MTR - 3.2mm 1 x 19 Wire Rope 316 Grade (Additonal cost Charged per Metre)


More Questions? No problem, just send us an email at sales@awrsolutions.com.au or give us a call on 1300 781 266 and we would be happy to help.

Specifications coming soon. Please contact us for details.

Wire Balustrade - Metal Insert System is suitable for use with metal posts.
Wire Balustrade - Metal Insert System is suited to both flat and stair sections.
All of our wires are made to order. General dispatch is 1-2 business days from the time your order is confirmed, and pick-up orders are ready within the same timeframe. During busy periods please allow an extra business day.
You will require a 9mm hole in your end connection posts to install the Nut Rivets. For your intermediate posts, an 8mm hole will be required to pass the threaded terminal through. A Nut Rivet Tool is required to install the Nut Rivets in your end posts. If you are using split grommets, choose them to suit the wall thickness of your intermediate posts: GROM-L-BK (black) or GROM-L-SR (silver) - suits 3-4mm wall thickness GROM-S-BK (black) or GROM-S-SR (silver) - suits 1.6-2mm wall thickness All four grommets are designed for the same 8mm hole, so there is no change to your intermediate post drilling.
Yes, the Metal Insert STAIR System is purpose built for stairs and already includes 1 x LHT Angle Connector and 1 x RHT Angle Connector per wire, so there is nothing extra to add.
Please give us your inside post to inside post measurements between your connection posts and we will take care of the rest.
The maximum recommended span between connection posts for this system is 10 metres.
As with all factory made systems we recommend using 3.2mm 1x19 wire. The fittings are hydraulically pressed onto the wire for a super streamline system.
You will need a power drill and drill bits (if posts are not being supplied by AWR). This system also requires a Nut Rivet Tool capable of installing LHT Nut Rivets. You will need two adjustable spanners for tensioning. We also recommend the AWR Multi Tool (MT01-090) to grip and hold the terminals, which makes installation much easier.
All wires are bundled per section and labelled with your measurements for quick installation on site.
We strongly advise against bending your wire around corners and angled sections. This can fatigue the wire over time as well as damage to your posts (especially timber). Wires should be terminated at each corner and end post.
To comply with Australian NCC regulations most wire balustrades will require 80mm spacing between your wires when your intermediate posts are no more than 1500mm apart. This is usually 11 runs of wire on a 1 metre high balustrade measuring 960mm to the underside of the handrail. This applies to most decks over 1 metre from the ground and below 4 metres from the ground, and there are additional restrictions that may apply. We highly recommend reading the Wire Balustrade Regulations Help section of our website prior to ordering.
To comply with Australian NCC regulations, the maximum spacing between your intermediate posts will be 1500mm for most wire balustrades. We highly recommend reading the Wire Balustrade Regulations Help section of our website prior to ordering.
