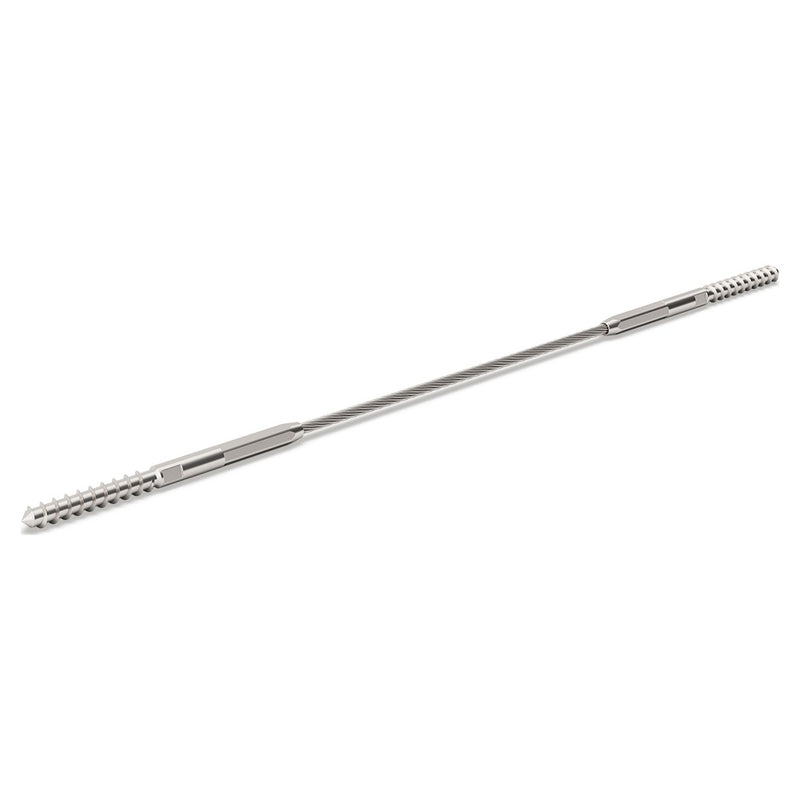

Wire Balustrade - Lag Screw System

Is our most economical factory swaged system. It is suitable for use with timber posts and is best suited to short straight sections. Tension is created on the wire by threading the LHT/ RHT swage studs into the timber posts.


Our Bright Finish range offers a stylish and extremely durable finish to your wire balustrade system. Made from high quality 316 Grade stainless steel and processed to perfection this bright stianless steel finish offers long term corrosion resistance with a smooth and shiny lustre. To see this high quality finish for yourself we recommend ordering a FREE SAMPLE HERE.

THIS SYSTEM:
• Is suitable for use with timber posts
• Is best suited to short straight sections i.e. not stairs
• Requires factory hydraulic swaging
• AWR can factory swage balustrade wires to your exact lengths. General dispatch is 1-2 business days from the time your order is confirmed. Manufacture times may vary during busy periods.

KEY BENEFITS OF THIS SYSTEM:
• Wires are pre-manufactured to your exact lengths
• Extremely quick and simple installation
• Uses ultra-bright and sleek 1 x 19 wire rope
• All fittings made from high quality 316 grade stainless steel

COMPONENTS REQUIRED PER WIRE:
1 x SS-7831L-63 - 6mm x 40mm LHT Swage Stud Lag Screw to suit 3.2mm Wire 316 Grade
1 x SS-7831R-63 - 6mm x 40mm RHT Swage Stud Lag Screw to suit 3.2mm Wire 316 Grade
2 x S03 - Cut and Factory Swage (Additional cost)
WRS119316-032-MTR - 3.2mm 1 x 19 Wire Rope 316 Grade Additional cost (Charged per Metre)


More Questions? No problem, just send us an email at sales@awrsolutions.com.au or give us a call on 1300 781 266 and we would be happy to help.

Specifications coming soon. Please contact us for details.

Wire Balustrade - Lag Screw System is suitable for use with timber posts.
Wire Balustrade - Lag Screw System is best suited to short, straight Wire Balustrade sections.
All of our wires are made to order. General dispatch is 1-2 business days from the time your order is confirmed, and pick-up orders are ready within the same timeframe. During busy periods please allow an extra business day.
You will require a 4.5mm hole in your end connection posts to install the Lag Screw. For your intermediate posts, an 8mm hole will be required to pass the Lag Screw through. A slightly larger hole may be required when using hardwood posts. If you are using split grommets, choose them to suit the wall thickness of your intermediate posts: GROM-L-BK (black) or GROM-L-SR (silver) - suits 3-4mm wall thickness GROM-S-BK (black) or GROM-S-SR (silver) - suits 1.6-2mm wall thickness All four grommets are designed for the same 8mm hole, so there is no change to your intermediate post drilling.
No, we do not recommend the Lag Screw System for use on stairs. This system is best suited to short, straight sections. For a stair balustrade with timber posts we recommend the Timber Insert System, which is suitable for both flat and stair sections.
Please give us your inside post to inside post measurements between your connection posts and we will take care of the rest.
The maximum recommended span between connection posts for this system is 6 metres.
As with all factory made systems we recommend using 3.2mm 1x19 wire. The fittings are hydraulically pressed onto the wire for a super streamline system.
All you require is a power drill, drill bits, a 10mm spanner and an adjustable spanner. We also recommend the AWR Multi Tool (MT01-090) for a good grip on the threaded terminals, which makes installation much easier.
All wires are bundled per section and labelled with your measurements for quick installation on site.
We strongly advise against bending your wire around corners and angled sections. This can fatigue the wire over time as well as damage to your posts (especially timber). Wires should be terminated at each corner and end post.
To comply with Australian NCC regulations most wire balustrades will require 80mm spacing between your wires when your intermediate posts are no more than 1500mm apart. This is usually 11 runs of wire on a 1 metre high balustrade measuring 960mm to the underside of the handrail. This applies to most decks over 1 metre from the ground and below 4 metres from the ground, and there are additional restrictions that may apply. We highly recommend reading the Wire Balustrade Regulations Help section of our website prior to ordering.
To comply with Australian NCC regulations, the maximum spacing between your intermediate posts will be 1500mm for most wire balustrades. We highly recommend reading the Wire Balustrade Regulations Help section of our website prior to ordering.
