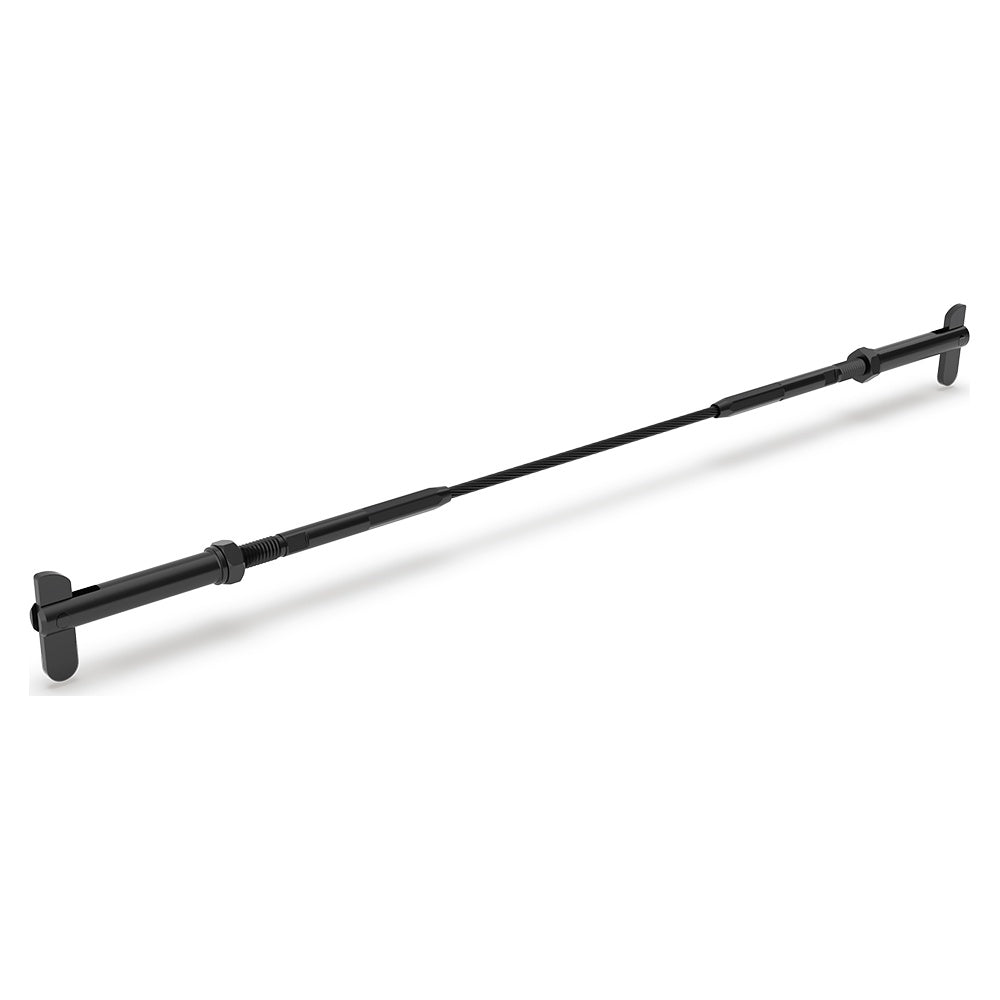

Wire Balustrade - Toggle Lock System - Black Is one of our most streamline systems. It is suitable for use with metal posts and is great for both straight sections and stair sections. Tension is created on the wire by threading the LHT/RHT swage studs into the LHT/RHT Toggle Lock Nuts. Tightening...

Perfect Fit
Guarantee

Flat Rate
Shipping

316 Marine
Grade SS

3D Balustrade Designer

Design your balustrade in 3D, get an instant quote with all components calculated

Wire Calculator

Enter your measurements and get an instant quote with wire lengths and pricing

Need help with your project?

Our team can walk you through the options

1300 781 266

See It In Action

BlackEtch Factory Swaged Wire Balustrade - Toggle Lock System - Suits Metal Posts
Product Video

Wire Balustrade - Toggle Lock System - Black

Is one of our most streamline systems. It is suitable for use with metal posts and is great for both straight sections and stair sections. Tension is created on the wire by threading the LHT/RHT swage studs into the LHT/RHT Toggle Lock Nuts. Tightening the nuts against the head of the Toggle Lock Nuts locks the system in place.


Exclusively available through AWR Solutions our BlackEtch process offers a unique, stylish, and extremely durable finish to your wire balustrade system. Etched into the surface of fittings and wire our BlackEtch process offers a smooth black finish with superior corrosion resistance. To see this great finish for yourself we recommend ordering a FREE SAMPLE HERE.

THIS SYSTEM:
• Is suitable for use with metal posts
• Is great for both flat and stair sections
• Requires factory hydraulic swaging
• AWR can factory swage balustrade wires to your exact lengths. General dispatch is 1-2 business days from the time your order is confirmed. Manufacture times may vary during busy periods.

KEY BENEFITS OF THIS SYSTEM:
• Wires are pre-manufactured to your exact lengths
• Extremely quick and simple installation
• Uses BlackEtch sleek 1 x 19 wire rope
• BlackEtch process offers a smooth black finish with superior corrosion resistance
• All fittings made from high quality 316 grade stainless steel
• This system is suitable for both flat and stair sections - suitable for stair sections up to 38º when a 10mm hole is drilled

COMPONENTS REQUIRED PER WIRE:
1 x BS-TLN-06L - M6 x 30 LHT Toggle Lock Nut 316 Grade
1 x BS-TLN-06R - M6 x 30 RHT Toggle Lock Nut 316 Grade
1 x BS-7801-03635L - M6 x 35mm LHT Swage Stud to suit 3.2mm Wire 316 Grade
1 x BS-7801-03635R - M6 x 35mm RHT Swage Stud to suit 3.2mm Wire 316 Grade
2 x S03 - Cut and Factory Swage (Additional Cost)
BWRS119316-032 - 3.2mm 1 x 19 Wire Rope 316 Grade (Additional cost Charged per Metre)


More Questions? No problem, just send us an email at sales@awrsolutions.com.au or give us a call on 1300 781 266 and we would be happy to help.

Specifications coming soon. Please contact us for details.

The Wire Balustrade - Toggle Lock System is suitable for use with metal posts.
The Wire Balustrade - Toggle Lock System is suitable for both flat and stair sections.
Tension is created on the wire by threading the LHT and RHT swage studs into the LHT and RHT Toggle Lock Nuts. Tightening the nuts against the head of the Toggle Lock Nuts locks the system in place.
All of our wires are made to order. General dispatch is 1-2 business days from the time your order is confirmed, and pick-up orders are ready within the same timeframe. During busy periods please allow an extra business day.
You will require a 9mm hole in your end connection posts to install the Toggle Lock Nuts. For your intermediate posts, an 8mm hole will be required to pass the threaded terminal through. For stair sections, a 10mm hole is required in your end connection posts. If you are using split grommets, choose them to suit the wall thickness of your intermediate posts: GROM-L-BK (black) or GROM-L-SR (silver) - suits 3-4mm wall thickness GROM-S-BK (black) or GROM-S-SR (silver) - suits 1.6-2mm wall thickness All four grommets are designed for the same 8mm hole, so there is no change to your intermediate post drilling.
Yes, the Toggle Lock System can be used on stair angles up to 38 degrees, with a maximum post wall thickness of 4mm. A 10mm hole in your end connection posts is required when using the Toggle Lock Nuts on stair sections.
Please give us your inside post to inside post measurements between your connection posts, along with the wall thickness of your posts, and we will take care of the rest.
The maximum recommended span between connection posts for this system is 10 metres.
As with all factory made systems we recommend using 3.2mm 1x19 wire. The fittings are hydraulically pressed onto the wire for a super streamline system.
With this system all you require is a power drill, drill bits and the AWR Multi Tool (MT01-090).
All wires are bundled per section and labelled with your measurements for quick installation on site.
We strongly advise against bending your wire around corners and angled sections. This can fatigue the wire over time as well as damage to your posts (especially timber). Wires should be terminated at each corner and end post.
To comply with Australian NCC regulations most wire balustrades will require 80mm spacing between your wires when your intermediate posts are no more than 1500mm apart. This is usually 11 runs of wire on a 1 metre high balustrade measuring 960mm to the underside of the handrail. This applies to most decks over 1 metre from the ground and below 4 metres from the ground, and there are additional restrictions that may apply. We highly recommend reading the Wire Balustrade Regulations Help section of our website prior to ordering.
To comply with Australian NCC regulations, the maximum spacing between your intermediate posts will be 1500mm for most wire balustrades. We highly recommend reading the Wire Balustrade Regulations Help section of our website prior to ordering.
